Poly-CCC

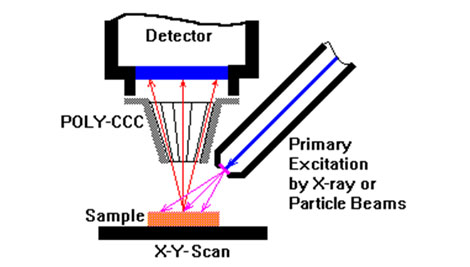

A Poly-CCC (Poly Capillary Conic Collimator) is an X-ray poly capillary optics with a conically shaped basic form. Divergent X-rays are collimated and guided. For instance it is possible to collect fluorescence radiation emitted from the sample surface and guide them to a detector. The sketch shows schematically the principle use of a Poly-CCC for XRF or PIXE.
Poly-CCC

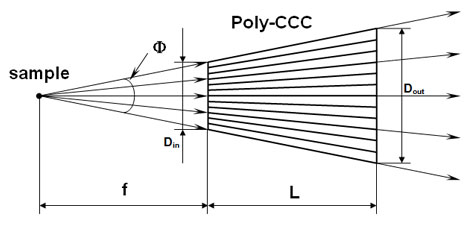

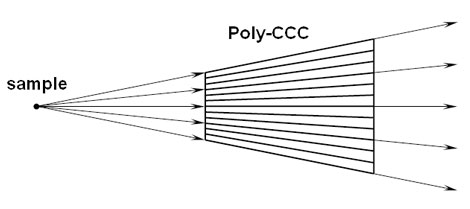

Schematic illustration
Specification
Radiation capturing system for micro-XRD, micro-XRF and micro-imaging applications
Technical Parameters Poly-CCC
| Sample - entrance distance f, mm | > 1 |
| Length L, mm | > 3 |
| Entrance size D1, mm | > 1 |
| Exit size D2, mm | 3 - 12 |
| Capture angle Φ, ° | > 20 |
| Spatial resolution, µm | > 20 |
